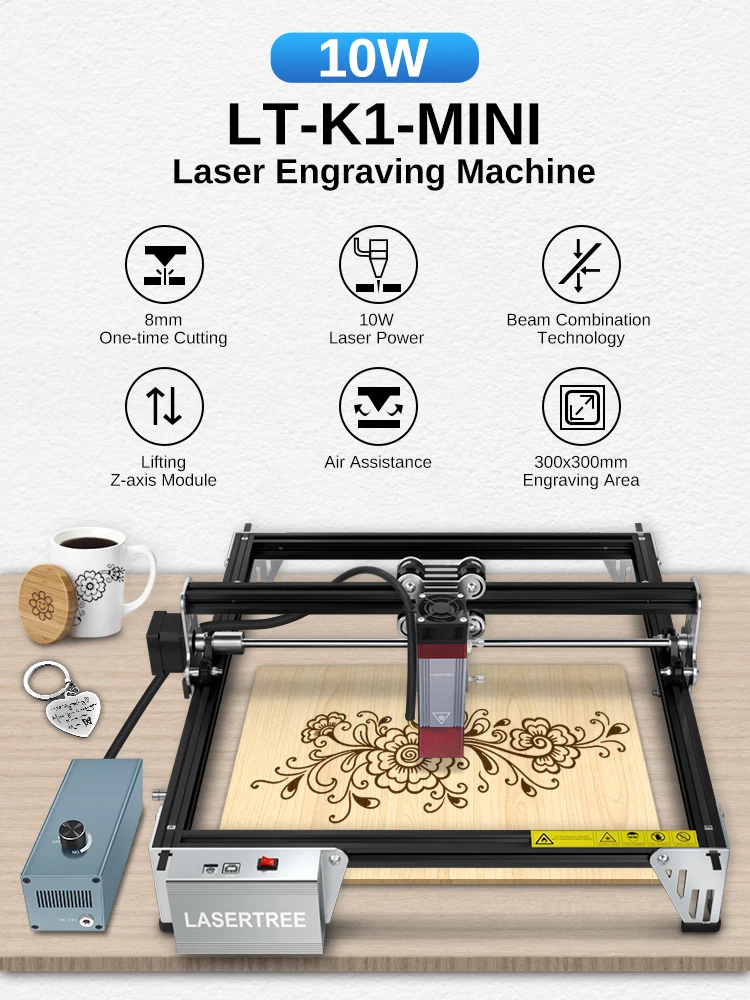

LT-K1-MIMI:

Built-in 2pcs 5.5W beam compressed laser diodes laser, it has an ultra-fine 0.01mmEngraving Precision, with super cutting penetration and precision, can cut up to 8mm thick bass plywood, 8mm acrylic, 3mm MDF, carve ceramics and stainless steel.

Engraving Area:The 300*300 mm working area is easy to use andmeets most of the creative needs of beginners.

Air Pump: It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges; Protecting the laser head's lens from contamination and extending the laser head's service life.In addition, it can improve the efficiency of laser processing and thus save your time.

Modular Design: aluminum profile structure design, Modularized appearance design, easier toassemble.60% pre-installed, saving moreinstallation time.

Modular Design: aluminum profile structure design, Modularized appearance design, easier toassemble.60% pre-installed, saving moreinstallation time.

Compatible Software and System
LaserGRBL:(free, support Windows)
Lightburn: (paid, support Windows, Mac OS and Linux)
Engraving file format support: SVG,NC, DXF,BMP, JPG,PNG.etc.

Note: Software not include.

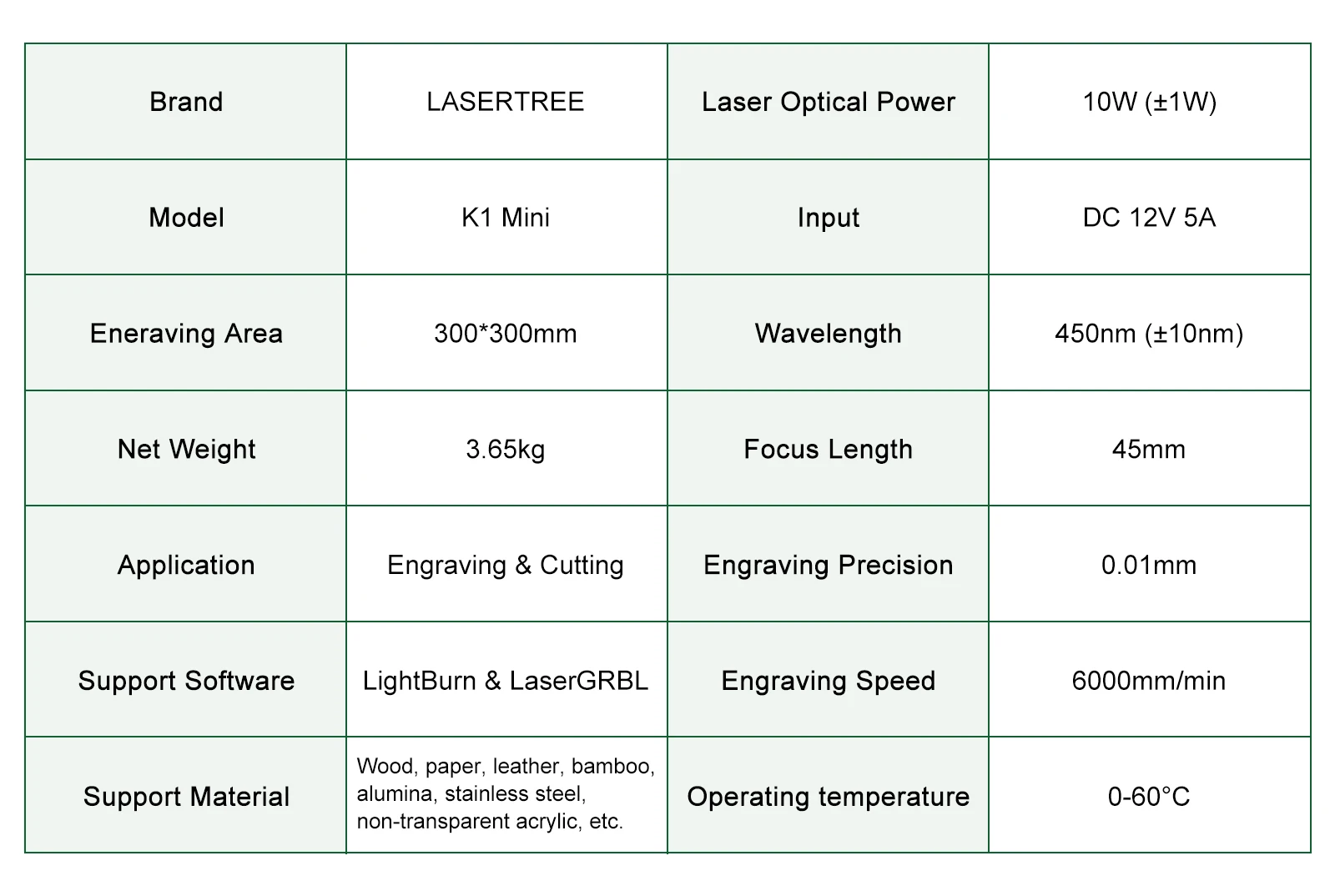

Machine parameters:

Machine Model: LT-K1 MINI
Machine Size: 300*300mm
Laser Optical Power: 10W
Input : 12V5A
Wavelength：450mm
Application: Engraving & Cutting
Engraving Precision: 0.01mm
Support Software: LightBurn & LaserGRBL

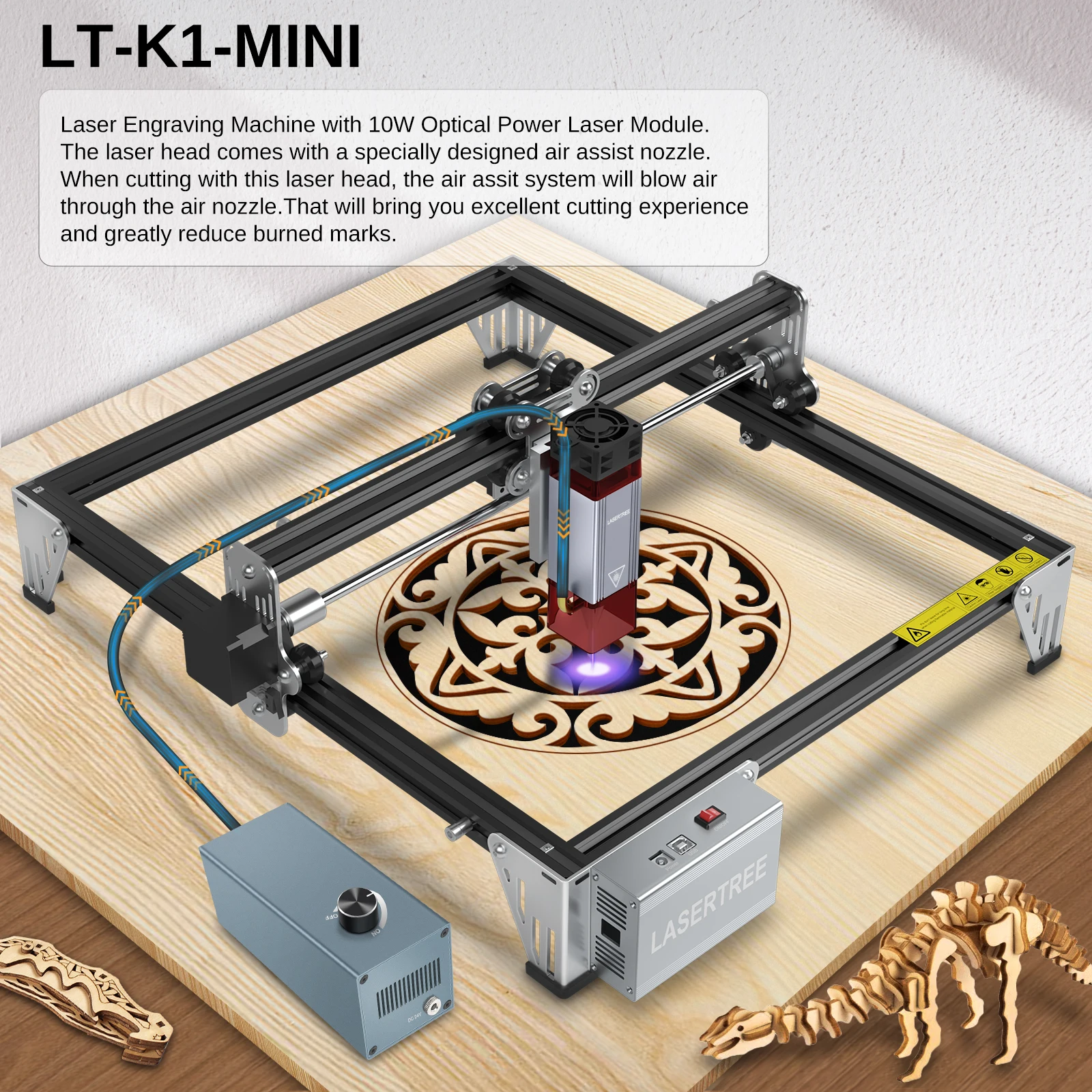

LT-K1-MINE+10W Laser Module

Laser Engraving Machine with 10W Optical Power Laser Module.The laser head comes with a specially designed air assist nozzle.When cutting with this laser head, the air assit system will blow airthrough the air nozzle.That will bring you excellent cutting experienceand greatly reduce burned marks.

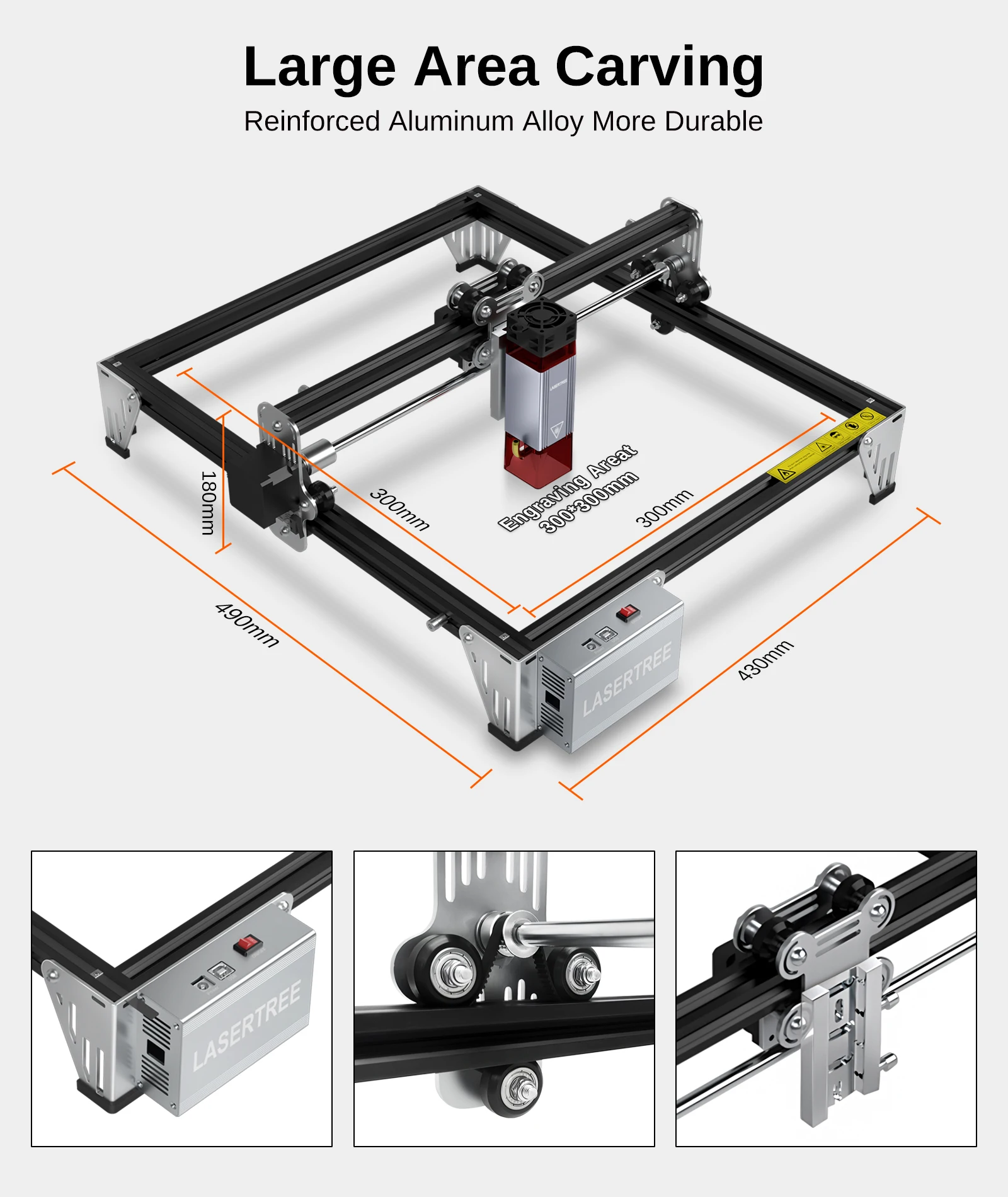

Large Area Carving

Reinforced Aluminum Alloy More Durable

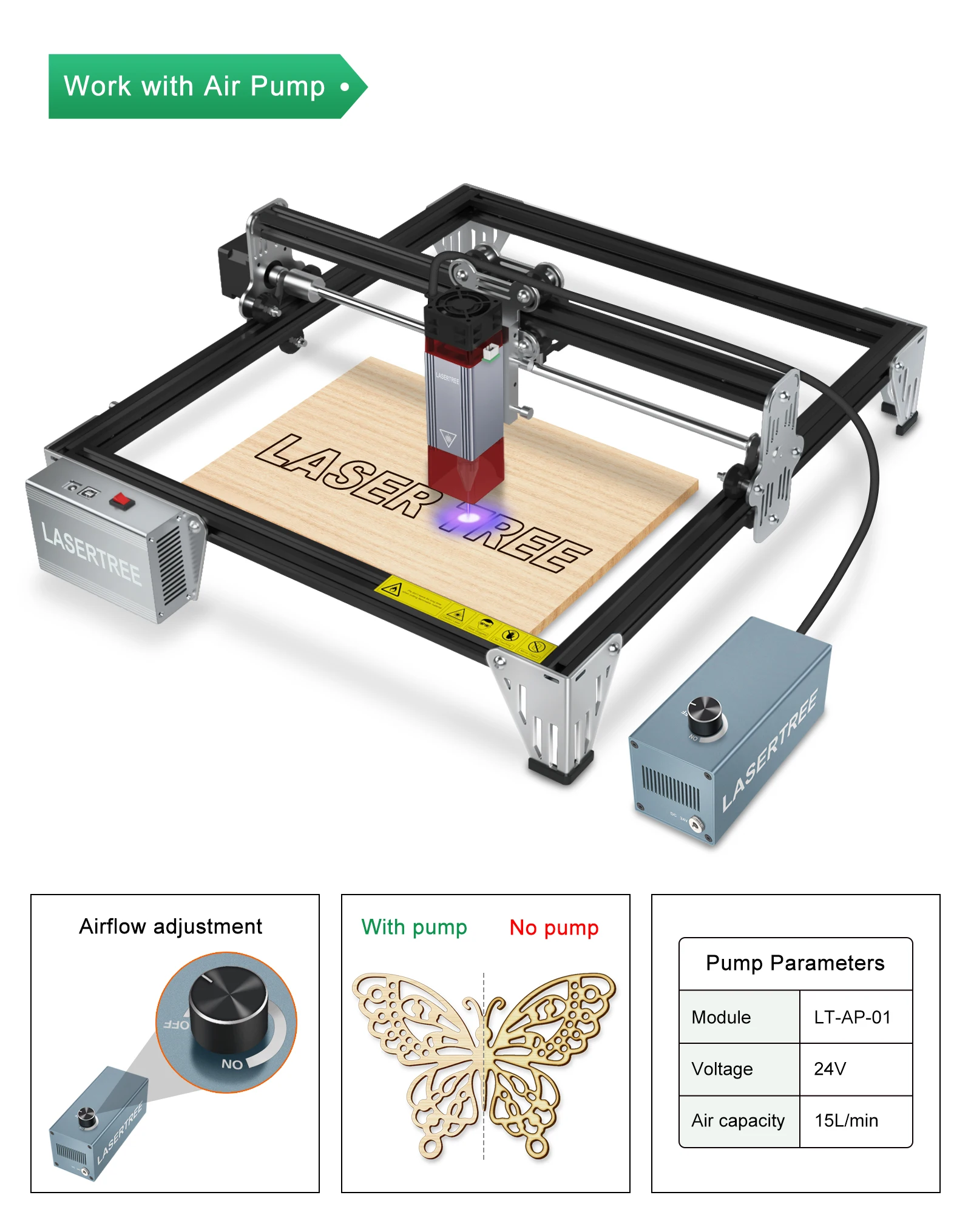

Work with Air Pump

Low noise air pump equipped with adjustable airflow of 0-15L/min. Large and steady output airflow can blow away the smoke and dust generated during laser cutting. Prevent smoke and dust from attenuating laser energy, and increase the lifespan of the laser module lens. Help cut faster cleaner and deeper.

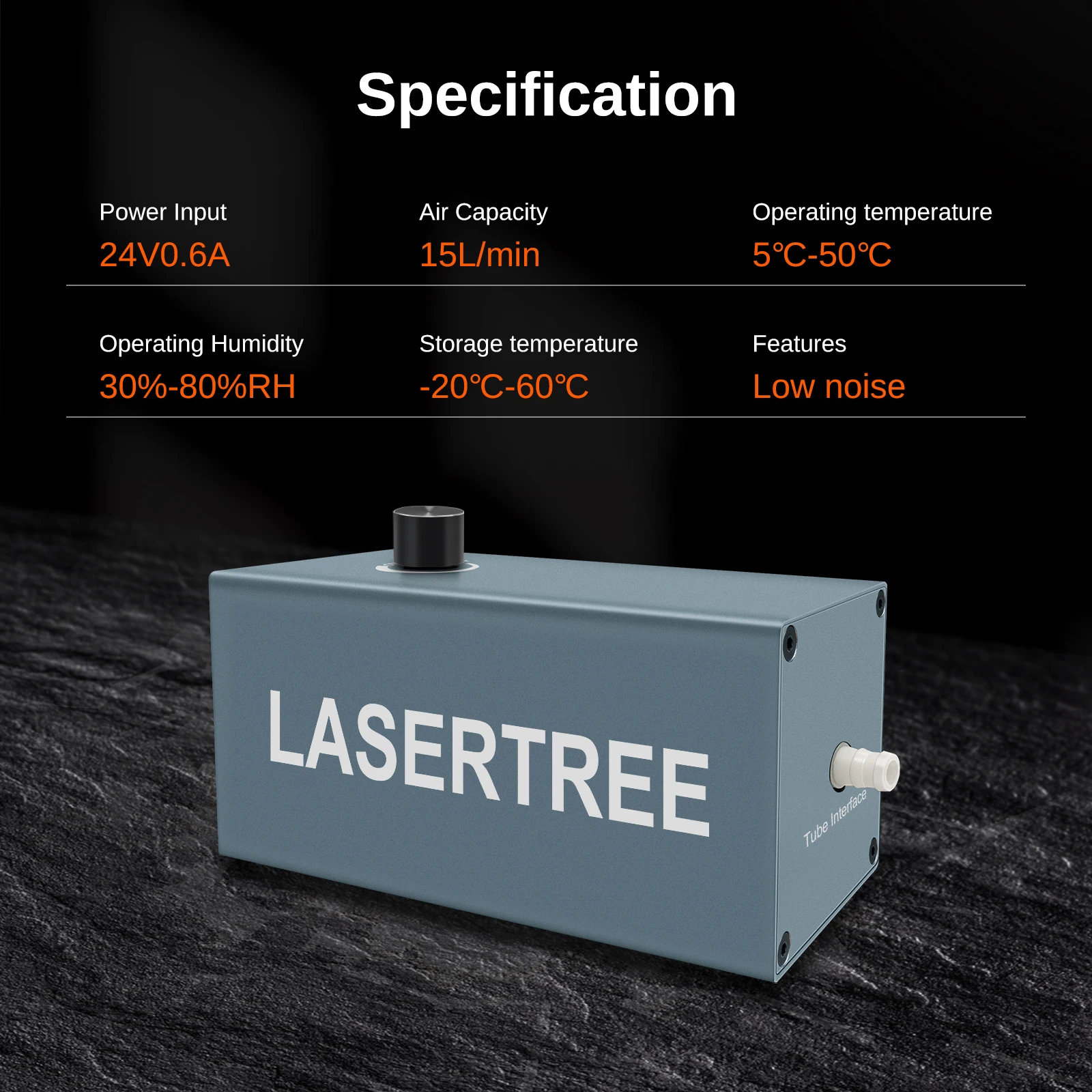

Air Pump: LT-AP-01

Power input: 24V0.6A
Air Capacity: 15L/min
Operating temperature: 5°C-50C
Operating Humidity: 30%-80%RH
Storage temperature: -20°C-60°C
Features: Low noise

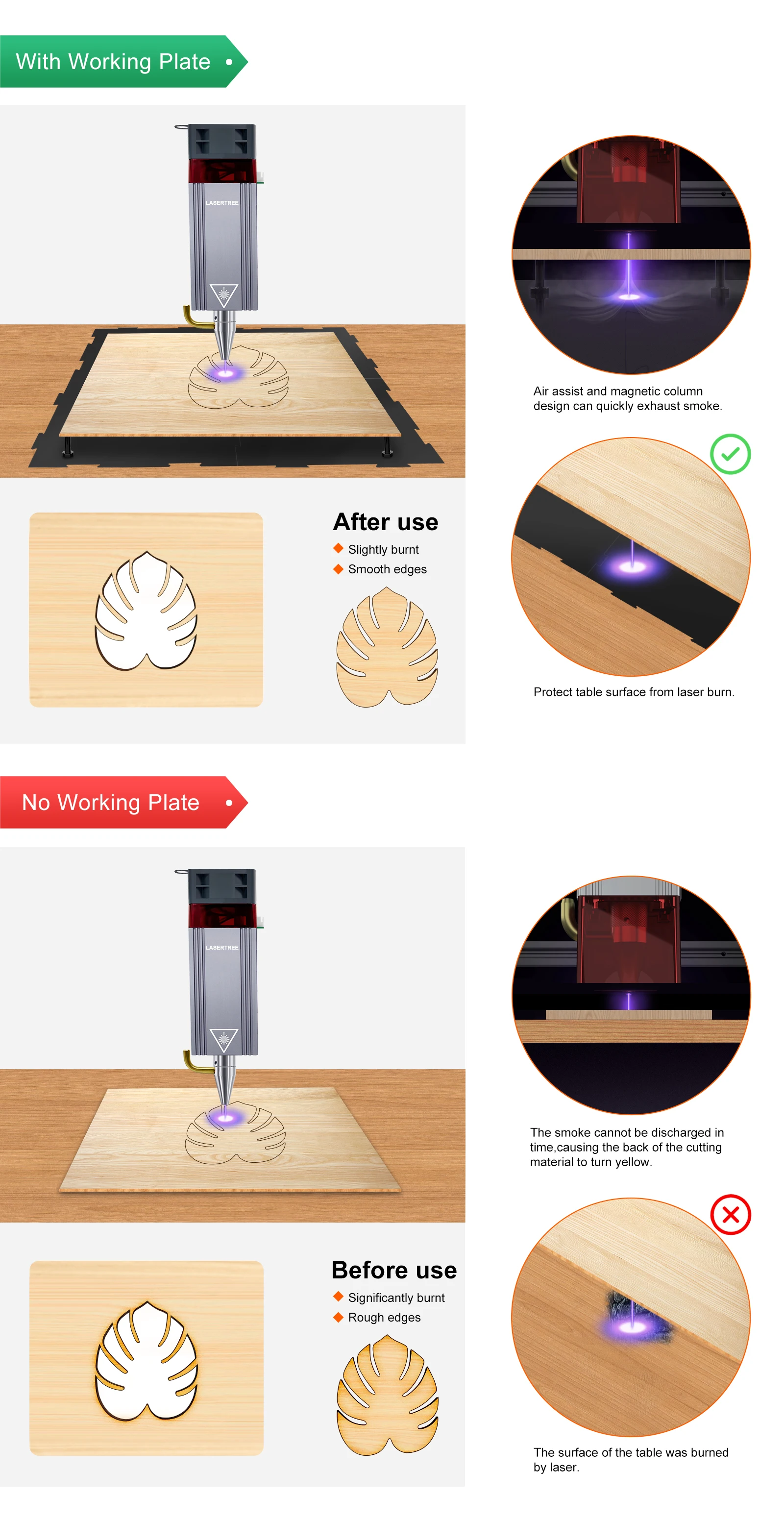

With Working Plate

1:Air assist and magnetic columndesign can quickly exhaust smoke.
2:Protect table surface from laser burn.

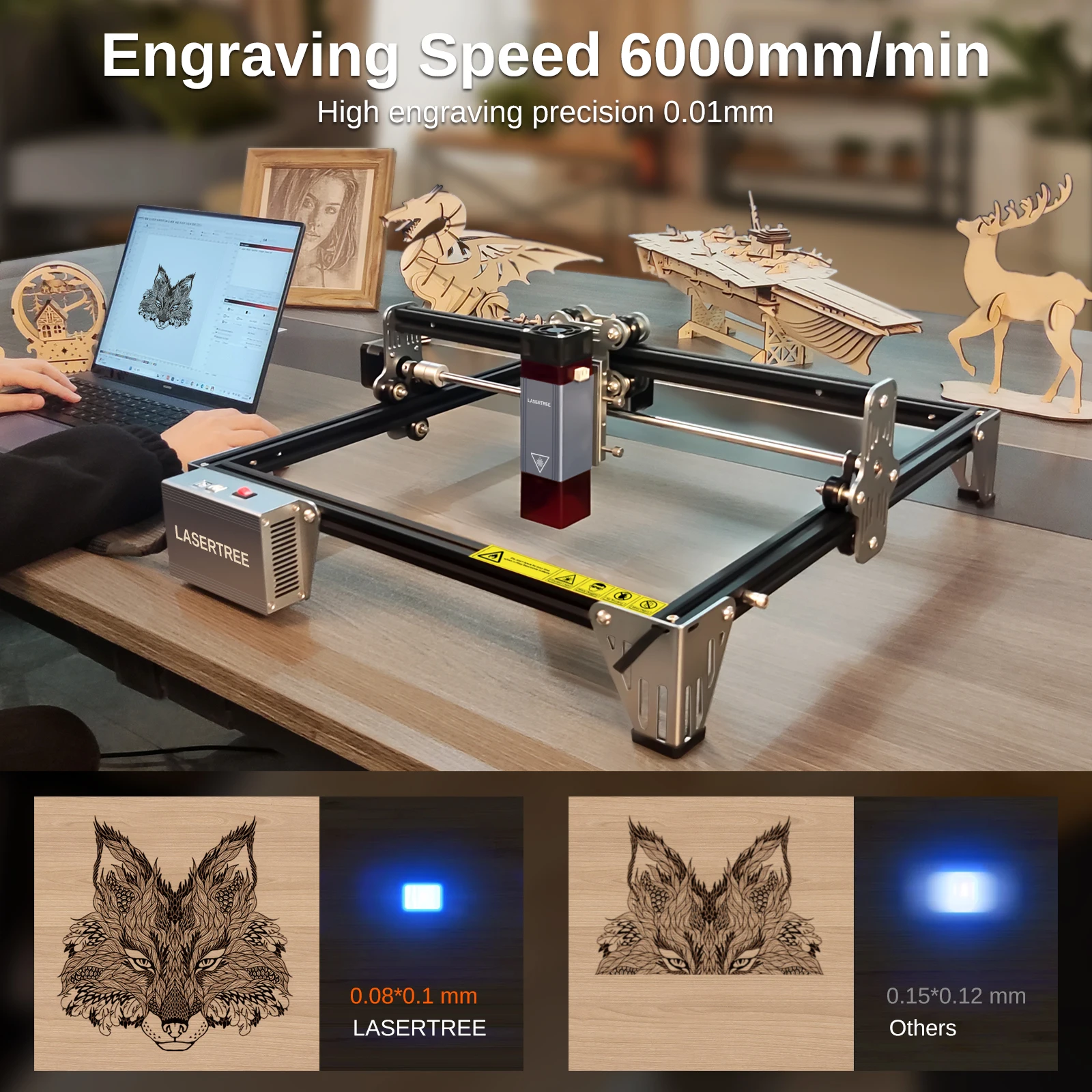

Engraving Speed 6000mm/min

High engraving precision 0.01mm

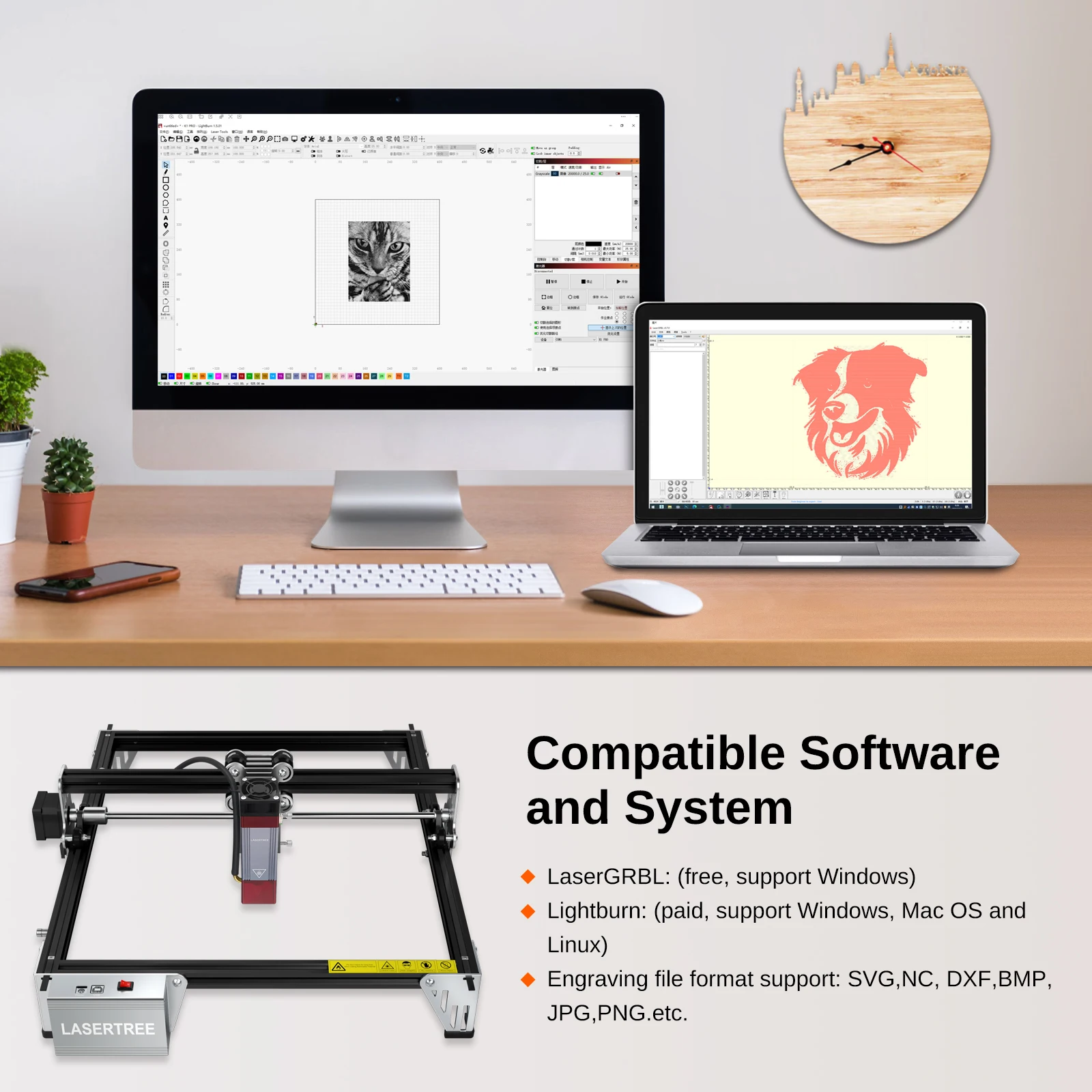

Compatible Softwareand System

LaserGRBL: (free, support Windows)

Lightburn: (paid, support Windows, Mac OS andLinux)

Engraving file format support: SVG,NC, DXF,BMPJPG,PNG.etc.

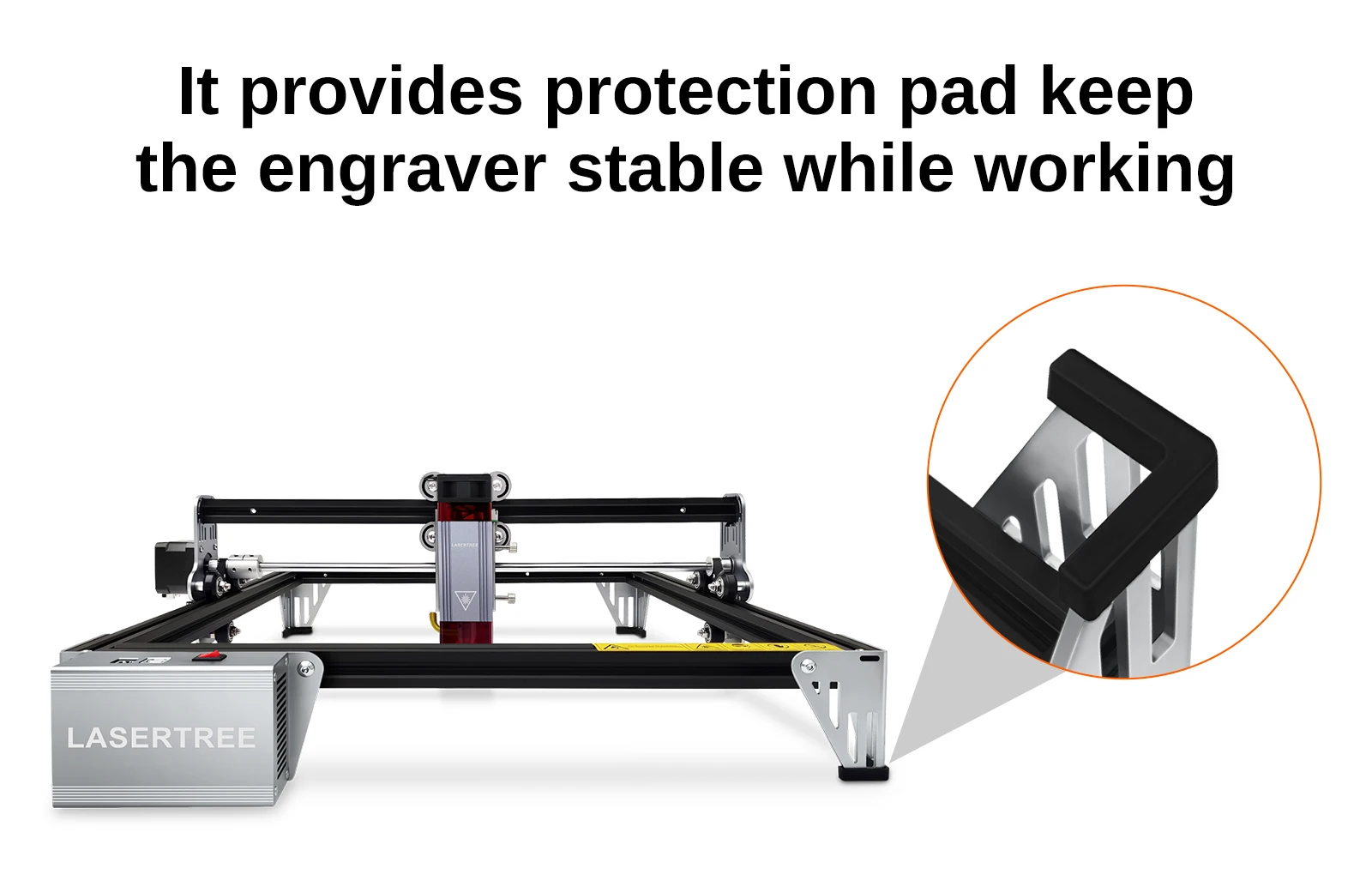

It provides protection pad keepthe engraver stable while working

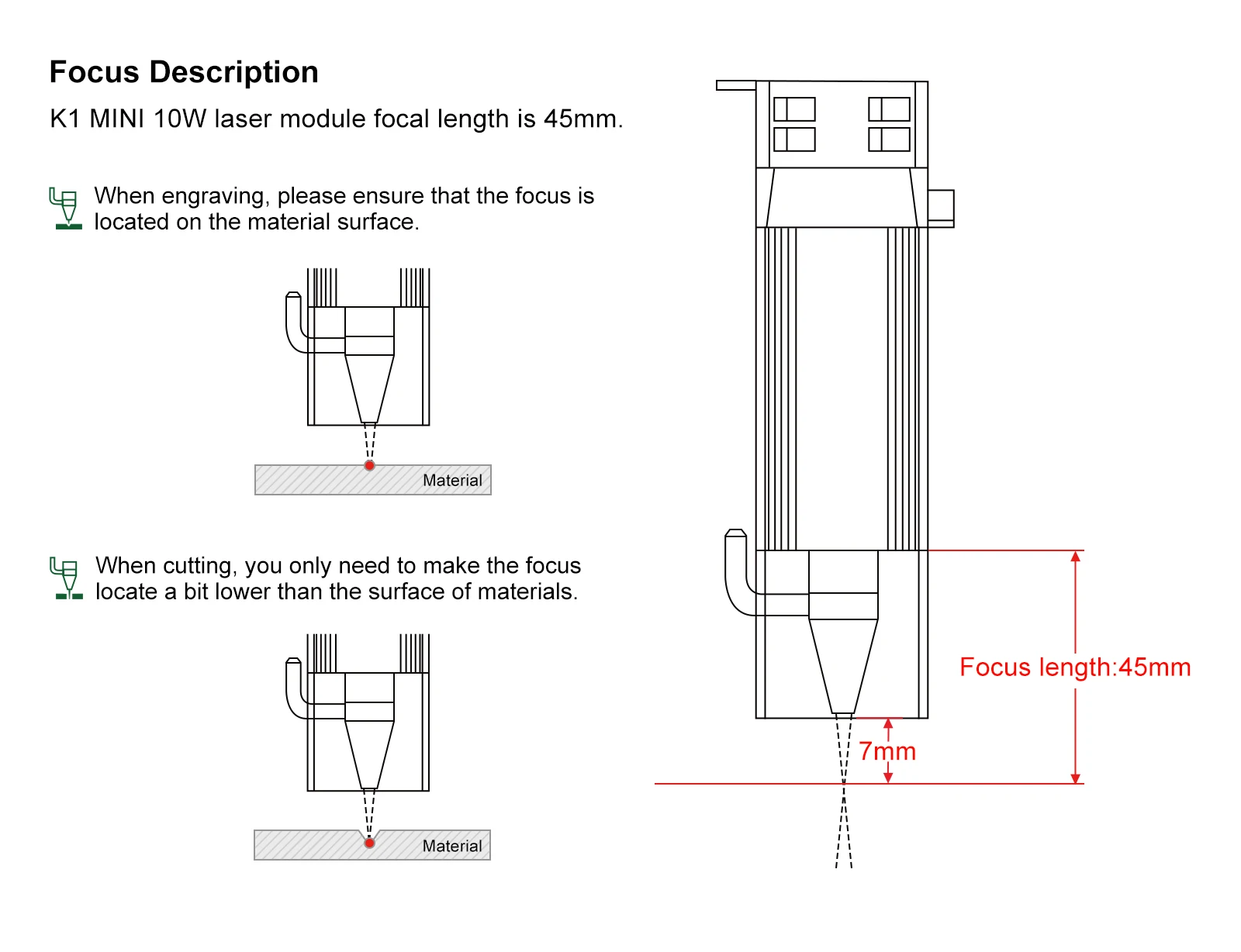

Focus Description

K1 MINl 10W laser module focal length is 45mm.

1:When engraving, please ensure that the focus islocated on the material surface.
2:When cutting, you only need to make the focuslocate a bit lower than the surface of materials.

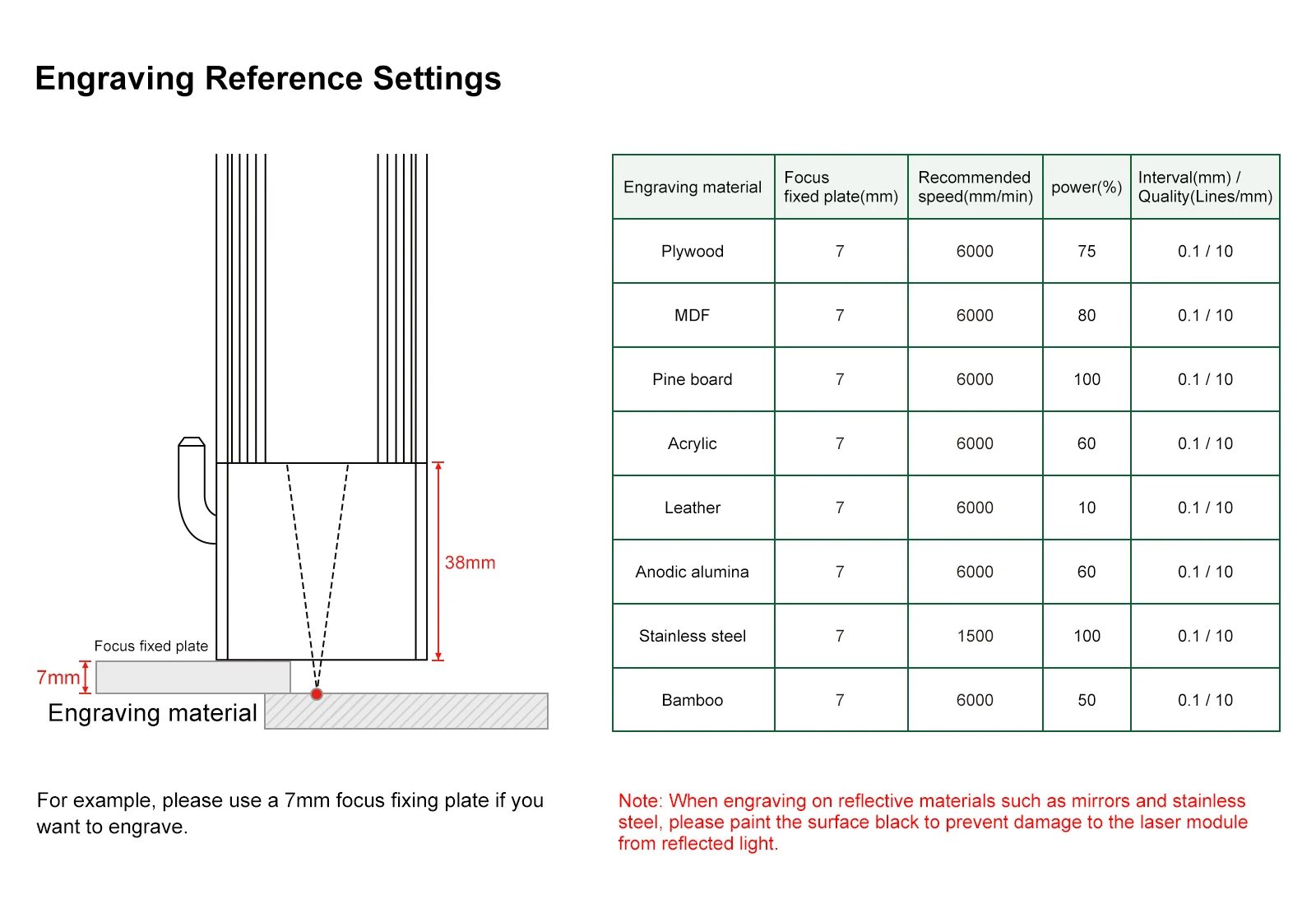

Engraving Reference Settings

For example, please use a 7mm focus fixing plate if youwant to engrave.

(Note: When engraving on reflective materials such as mirrors and stainlesssteel, please paint the surface black to prevent damage to the laser modulefrom reflected light.)

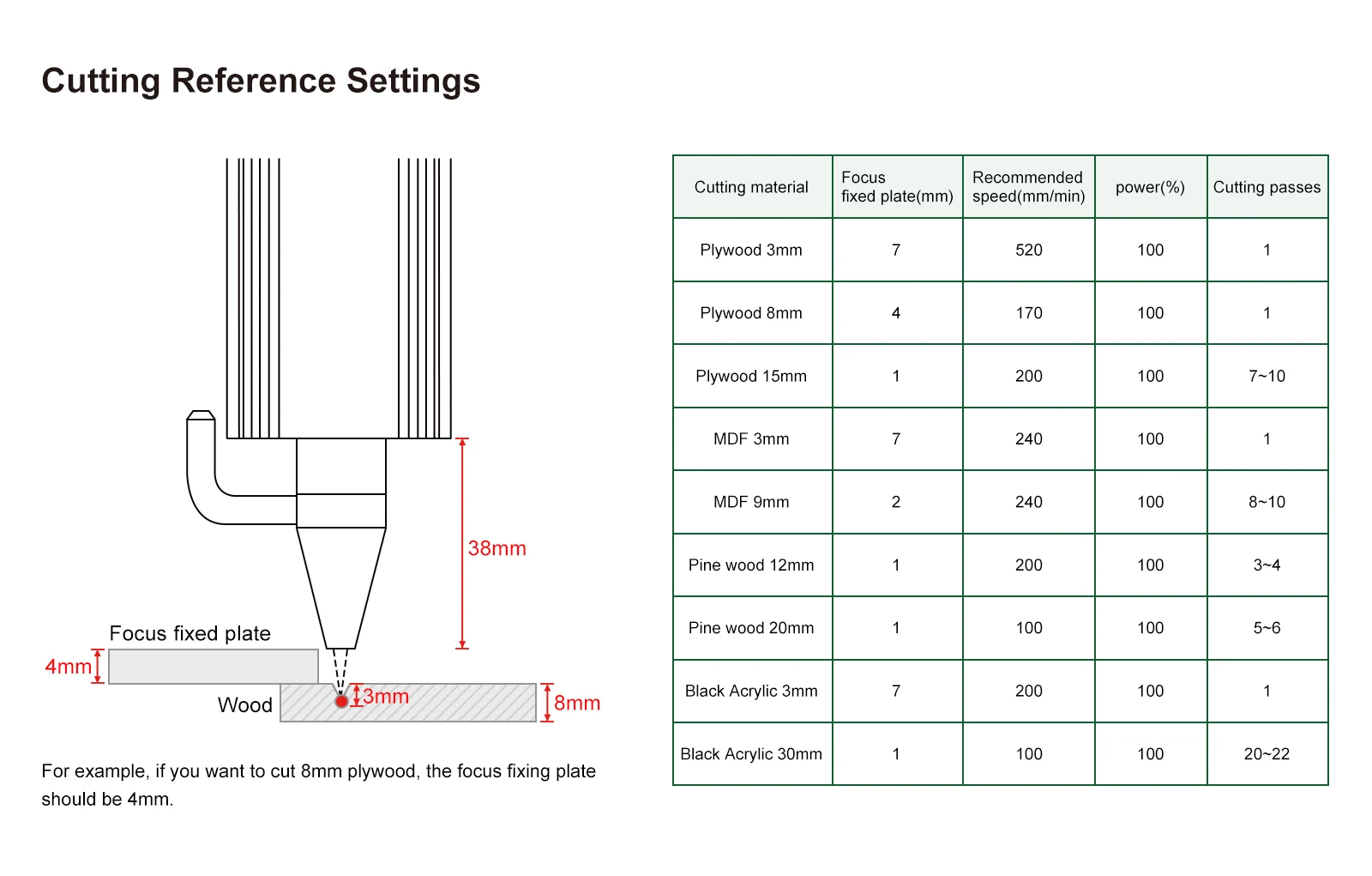

Cutting Reference Settings

For example, if you want to cut 8mm plywood, the focus fixing plate should be 4mm.

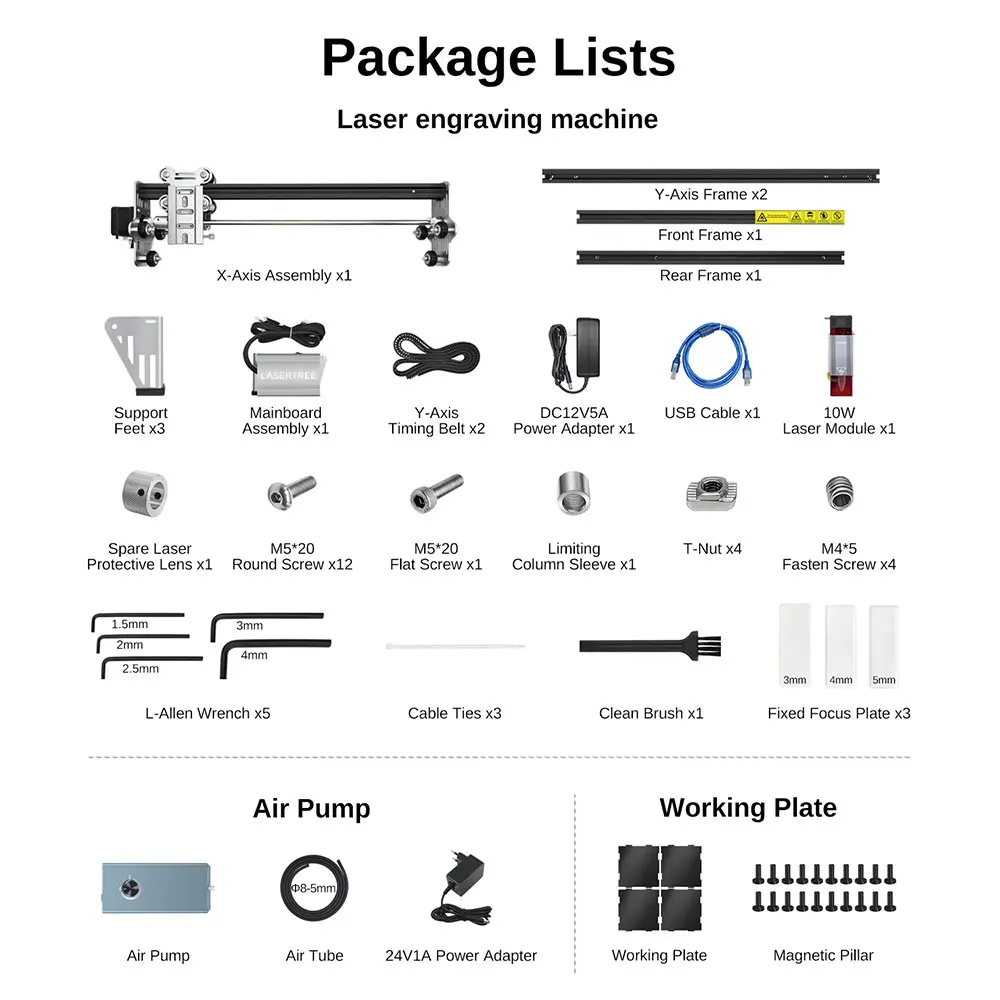

PACKING LIST:

Laser engraving machine(inclulding 10w laser head) +Air Pump+ Working Plate

Laser Module: LT-80W-AA-Pro

Material: aluminum alloy
Effect output power: 80W
Optical Power：10W (±1W)
Wavelength: 450nm (±10nm)
Light color: blue
Focus Length: 45mm
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A); 24V 1.7A(1.5A-2A)
PWM Modulation: 0/3-12V 1-5kHz, 0V off and 3-12V on
Input port: XH2.54-3P socket

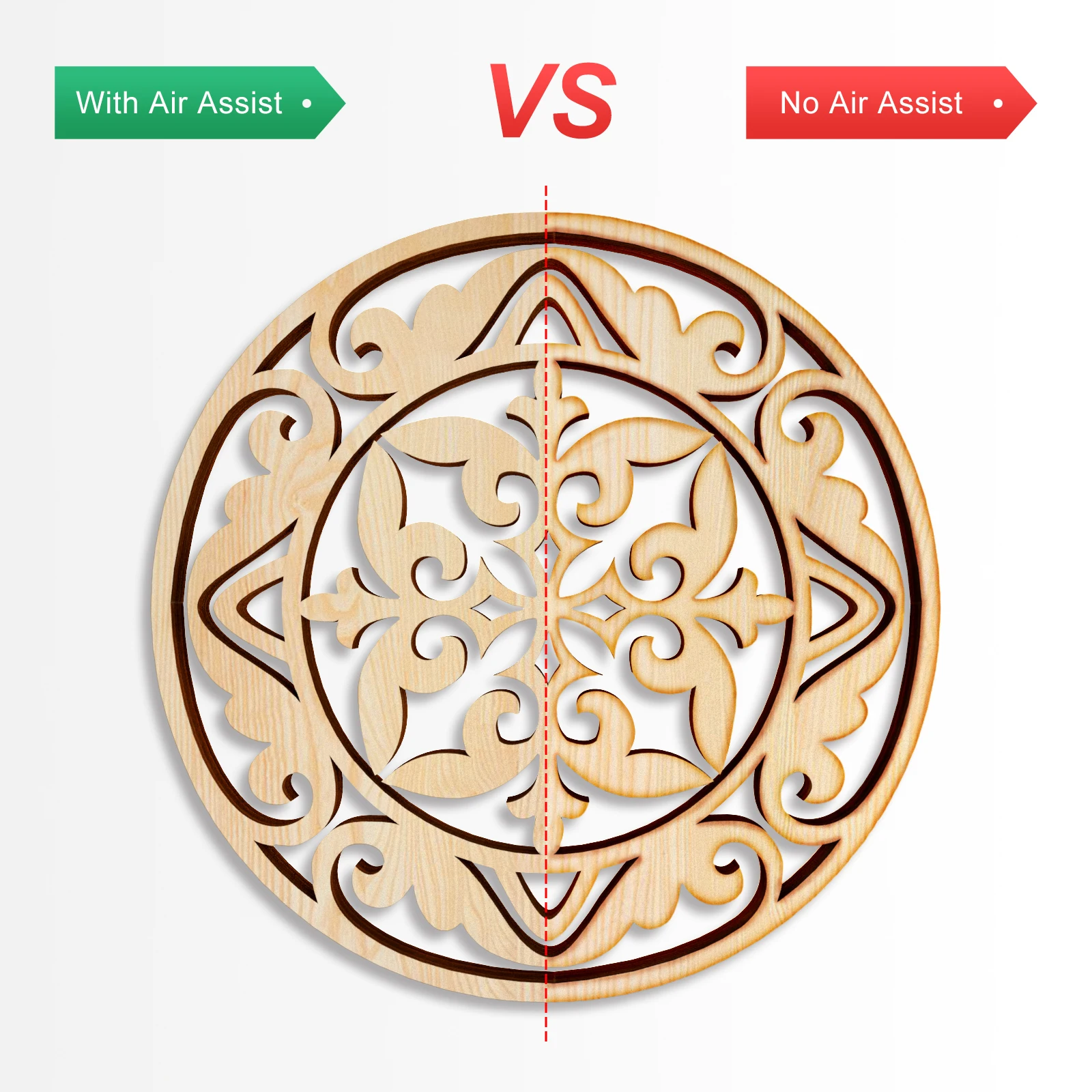

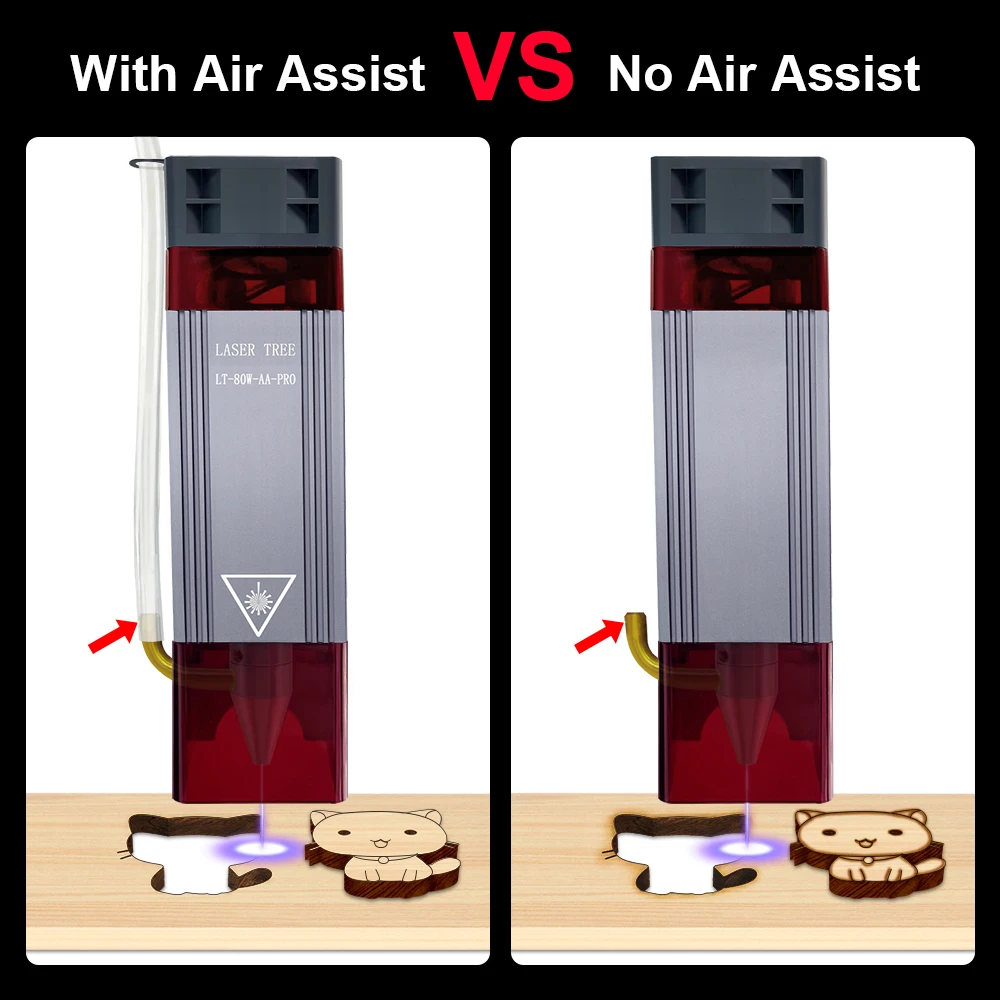

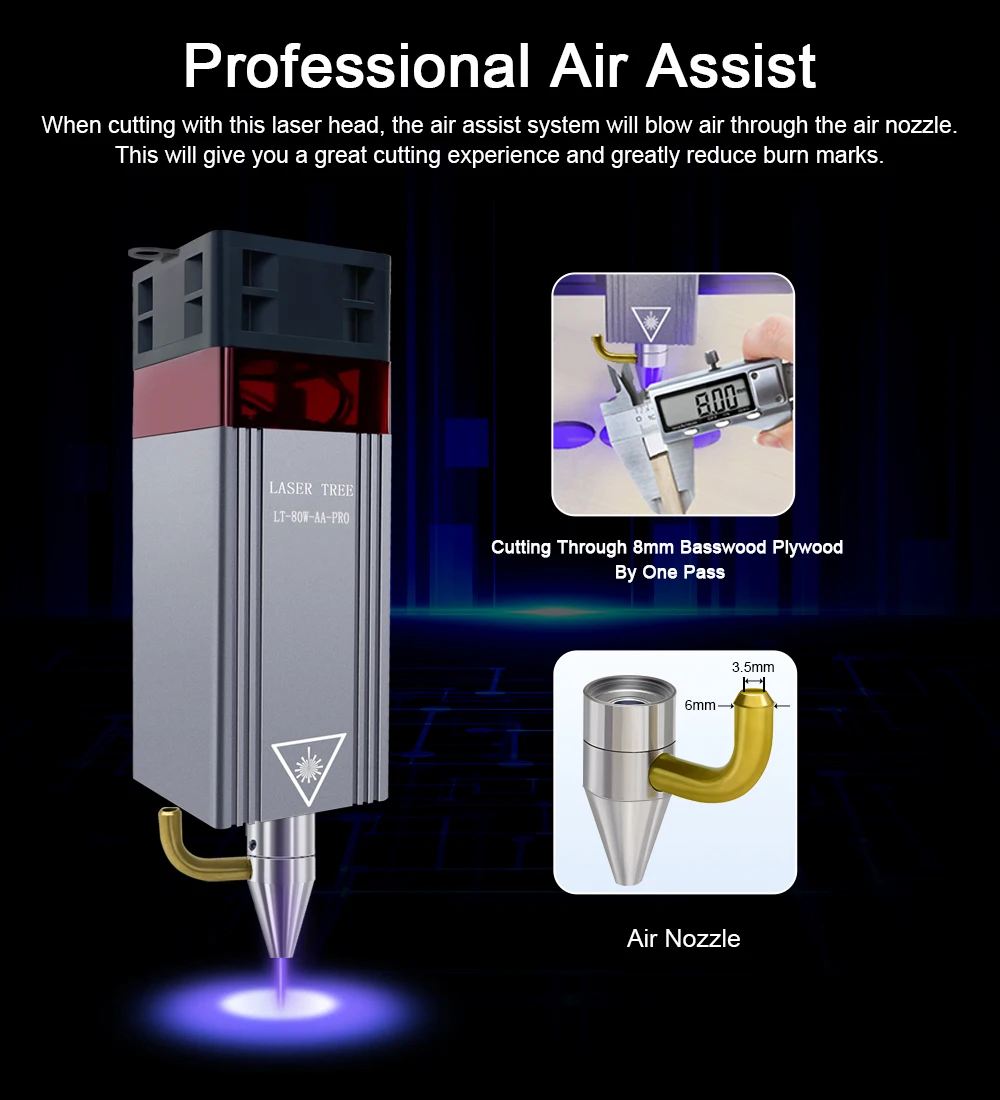

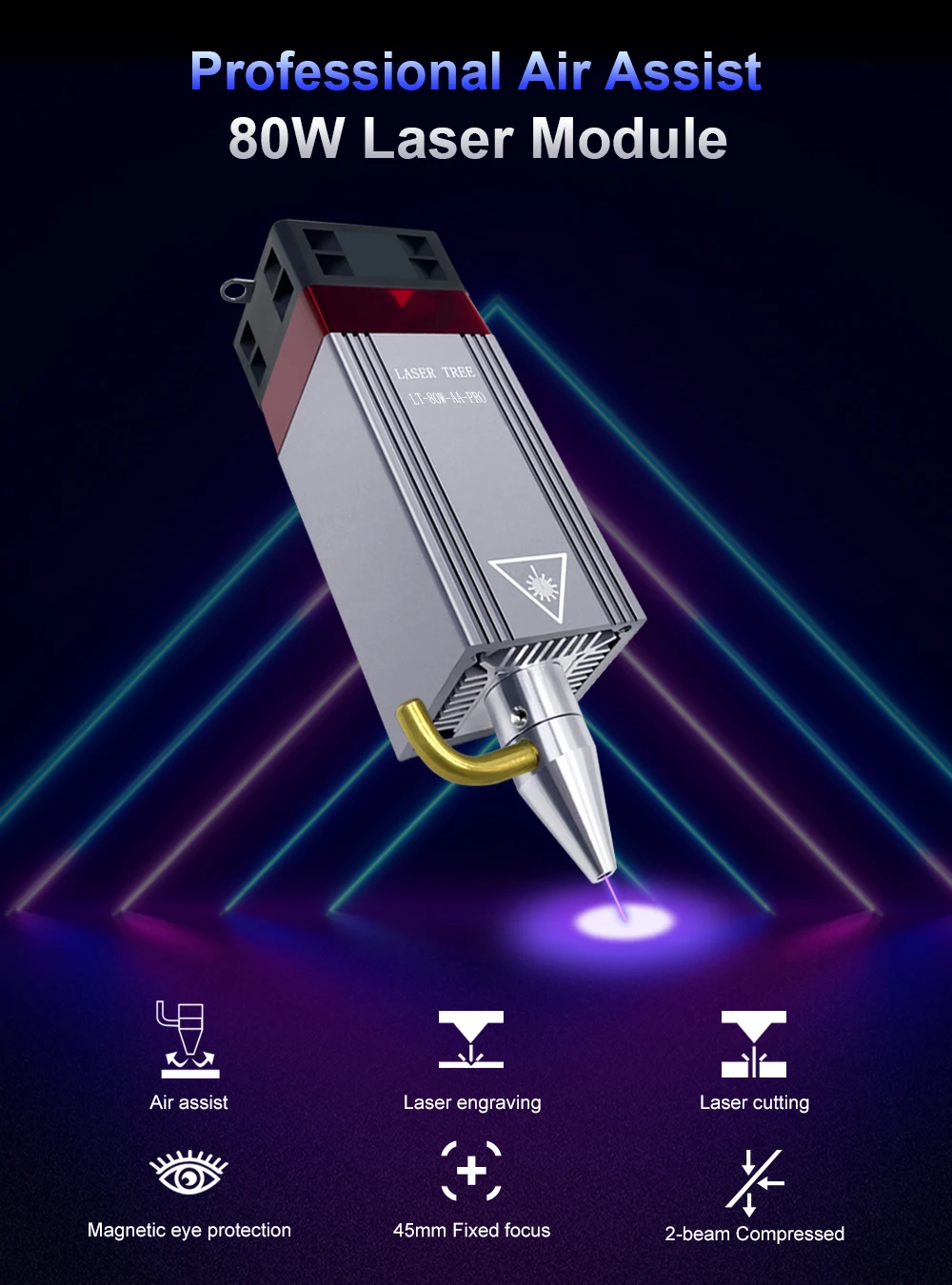

Professional Air Assist

Upgraded 6mm diameter air nozzle has an advanced hydrodynamic design, which better reduces air resistance and faster jet airflow.
Recommended inner diameter of air tube: Φ4mm, outer diameter: 8x6mm
Air pump suggestion:Air pressure and capacity: ≥0.027kPa, 27L/min

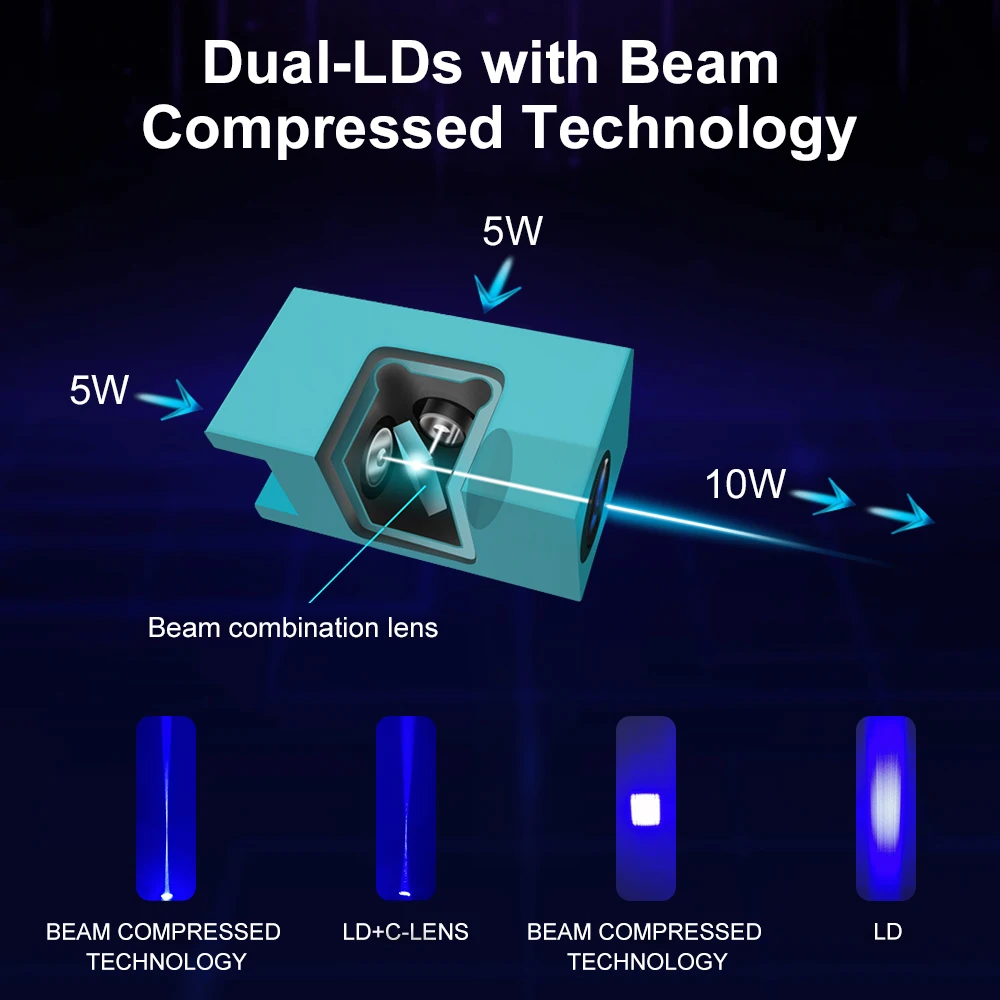

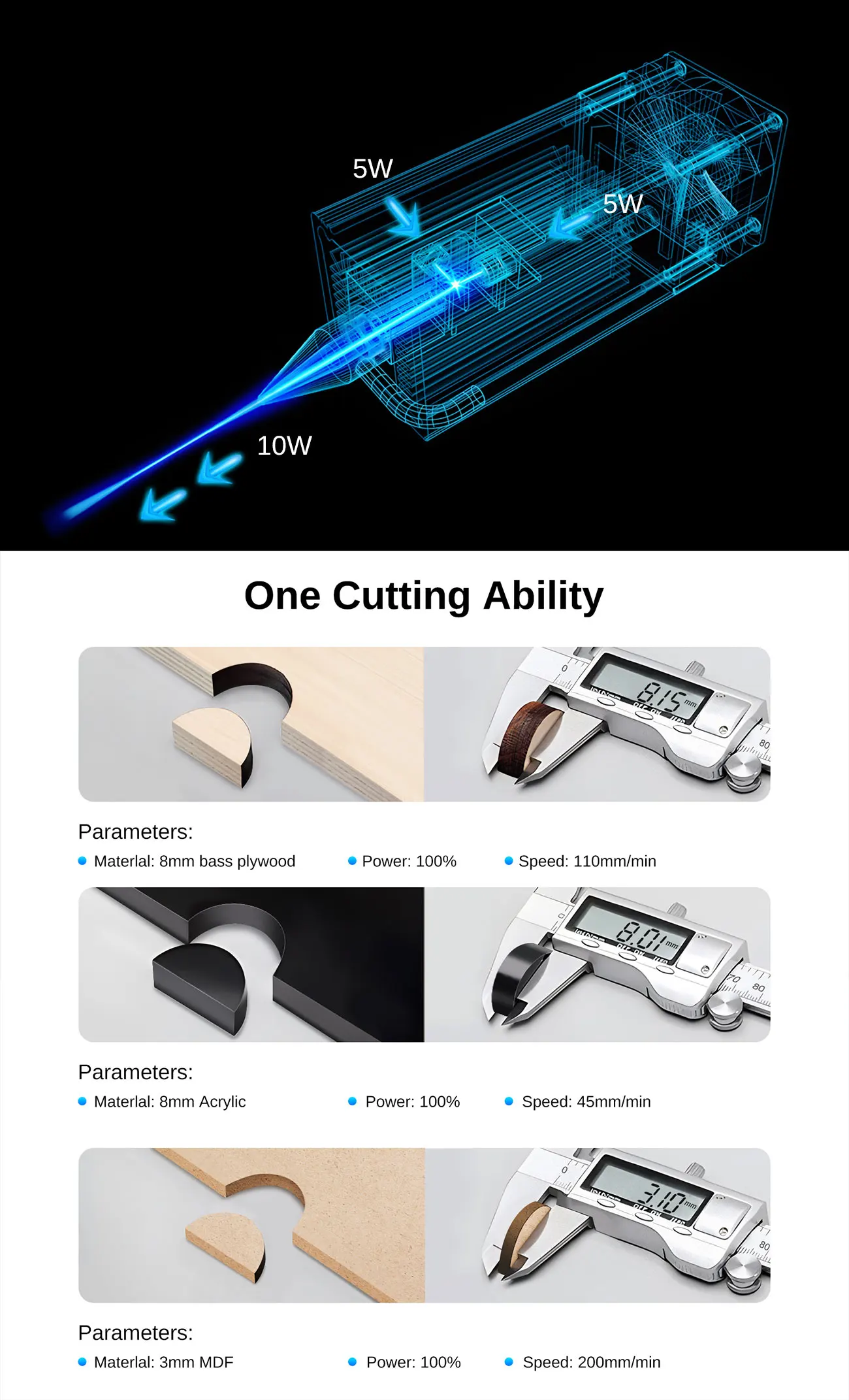

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

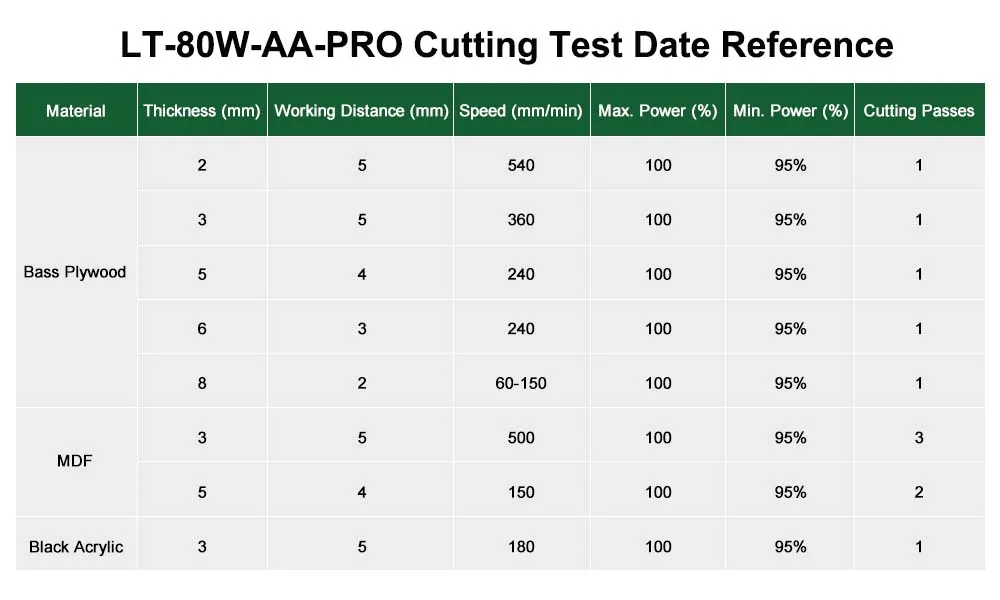

Powerful Cutting Ability

Cut 8mm bass plywood: 120mm/min,100% power,by one pass
Cut 5mm black acrylic: 50mm/min,100% power,by one pass
Cut 5mm MDF: 150mm/min,100% power,by 2 passes

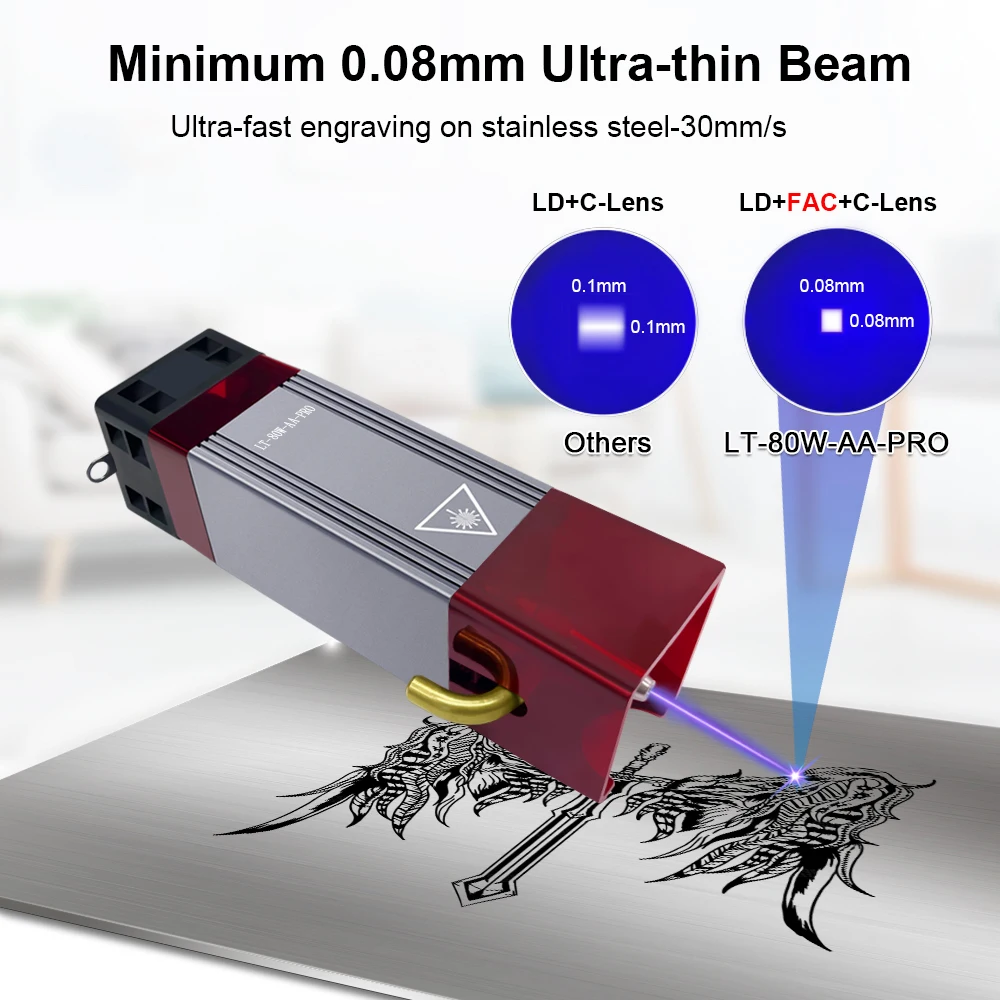

Minimum 0.08mm Ultra-thin Beam

Ultra-fast engraving on stainless steel-30mm/s

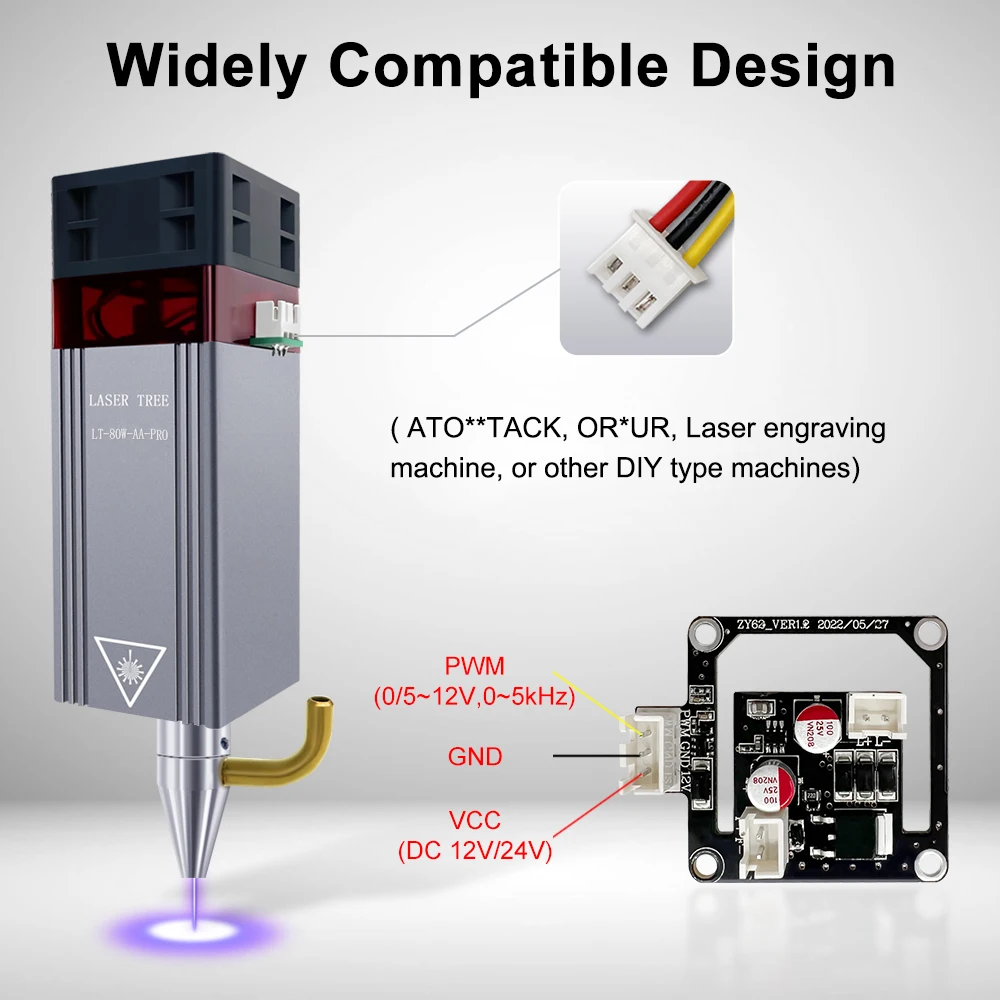

Widely Compatible Design

Suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines
