SPECIFICATIONS

Brand Name: Laser Tree

Certification: CE,RoHS,weee

Hign-concerned Chemical: None

Model Number: LT-K1-MINI

Origin: Mainland China

LASER TREE K1 Laser Engraving Cutting Machine with 10W Laser Head Kit 450nm Blue Light TTL Module CNC Engraver Cutter DIY Tools

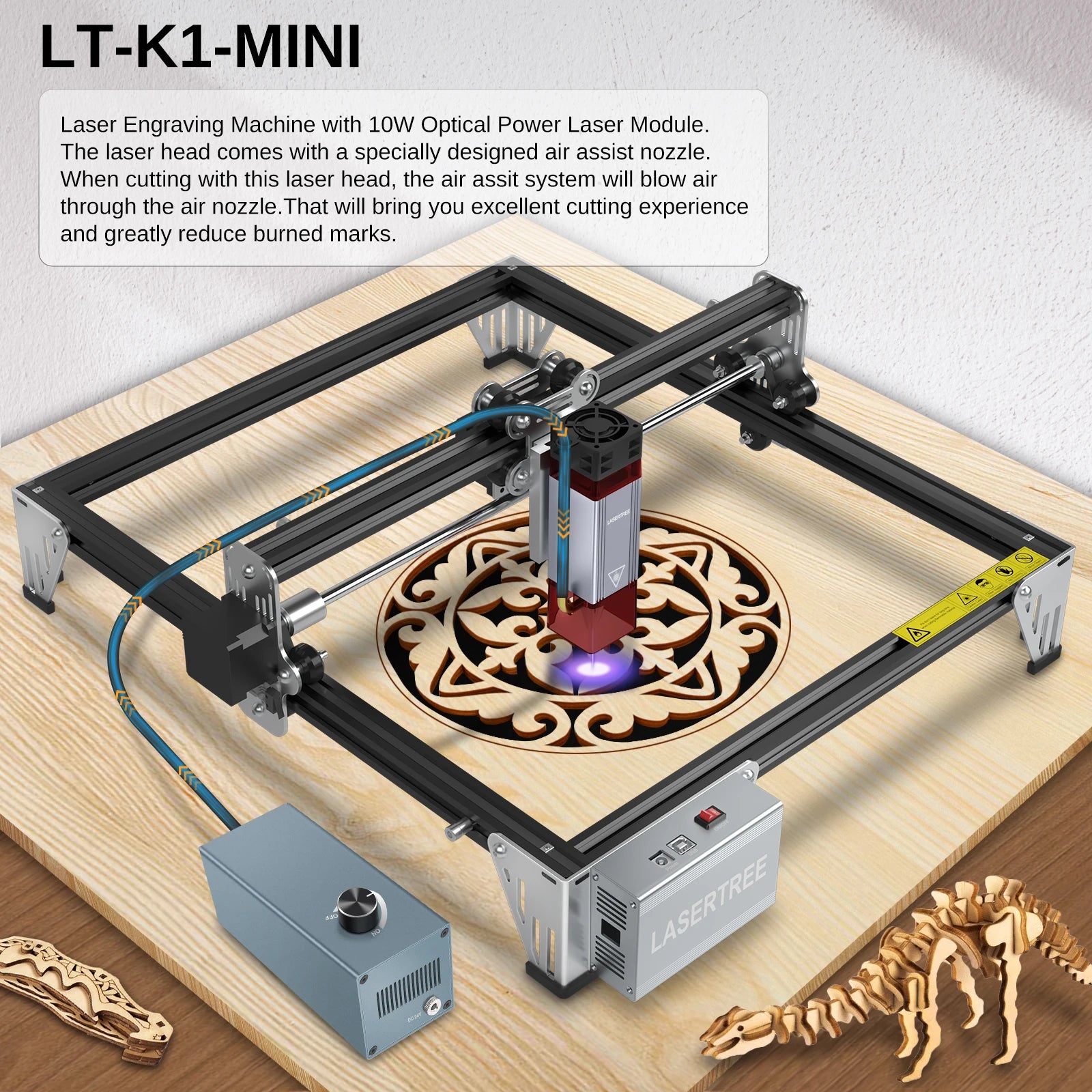

1.Laser Engraving Machine--LT-K1-MINI

Laser Tree K1 Mini offers you a full set of accessories - laser engraving machine + 10W laser head + air pump + working plate.

The engraving area is 300*300 mm and meets most of the creative needs of beginners. larger frame body, a larger engraving range, your creativity will no longer be limited by the engraving space, even large pictures engraving requirements can be perfectly reproduced.

2. 10W Optical Power Laser Head---LT-80W-AA-PRO

About Cutting：

The laser head can cut through 8mm plywood, 8mm black acrylic, 3mm MDF by one pass. It is also equipped with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

About Engraving：Laser spot as small as 0.08*0.1 mm for finer engraving.

3. Air Pump--LT-AP-01

Low noise air pump equipped with adjustable airflow of 0-15L/min. Large and steady output airflow can blow away the smoke and dust generated during laser cutting. Prevent smoke and dust from attenuating laser energy, and increase the lifespan of the laser module lens. Help cut faster cleaner and deeper.

4. Working Plate

The work plate helps protect desktop surfaces from laser burns.

Air assist and magnetic column design helps smoke discharge protects wood from hot smoke and solves the problem of yellowing of materials due to smoke.

5. Compatible Software and System

LaserGRBL:(free, support Windows)

Lightburn: (paid, support Windows, Mac OS and Linux)

Engraving file format support: SVG,NC, DXF,BMP, JPG,PNG.etc.

Note: Software not include.

6. Easy to Assemble

Designed for easy-assembly, Includes detailed installation instructions and video, it only takes a few steps to complete the assembly.With Air Assist VS No Air Assist

When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Engraving Speed 6000mm/min

High engraving precision 0.01mm

It provides protection pad to keep the engraver stable while working.Air Pump SpecificationWorking Plate

The work plate helps protect desktop surfaces from laser burns.

Air assist and magnetic column design helps smoke discharge protects wood from hot smoke and solves the problem of yellowing of materials due to smoke.Compatible Software and System

LaserGRBL:(free, support Windows)

Lightburn: (paid, support Windows, Mac OS and Linux)

Engraving file format support: SVG,NC, DXF,BMP, JPG,PNG.etc.

Note: Software not include.Easy to Assemble

Designed for easy-assembly, Includes detailed installation instructions and video, it only takes a few steps to complete the assembly.Cutting Reference Settings

Engraving Reference Settings

Note: Glossy metal plate, Transparent materials, Reflecting materials, Some materials in white color or pervious to light, etc. Then, you need to use the marker pen to black it to engrave.

For Cutting Work

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.

For Engraving Work

The focal point is at the surface of the material.
